360° Red Light Therapy Room

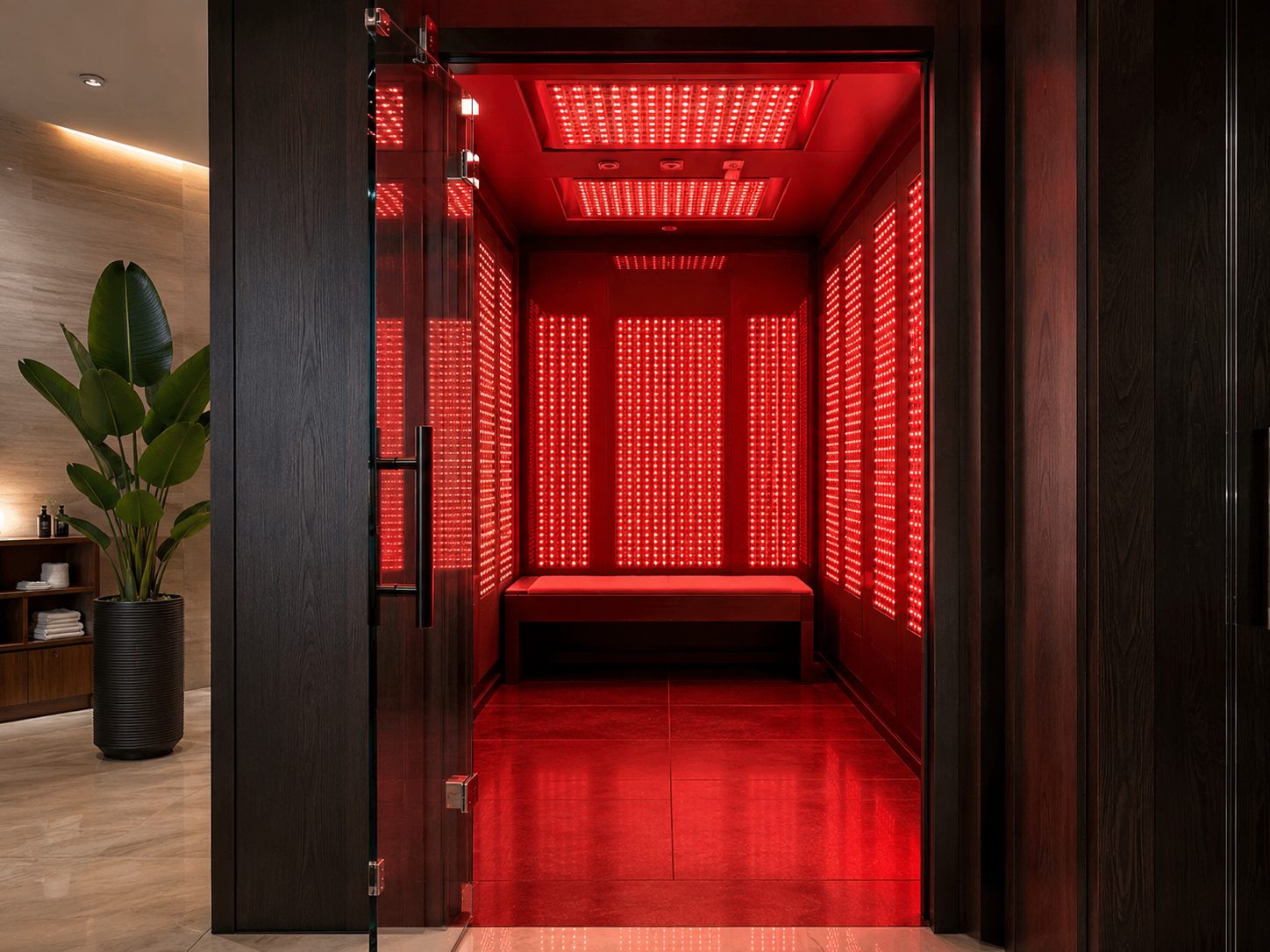

Step into a chamber built entirely of light. LED arrays on every wall and the ceiling surround the body from all sides — a custom-built 360° therapy room, finished to match your space, and the format resorts choose when the room itself has to impress.
A Room That Surrounds You With Light

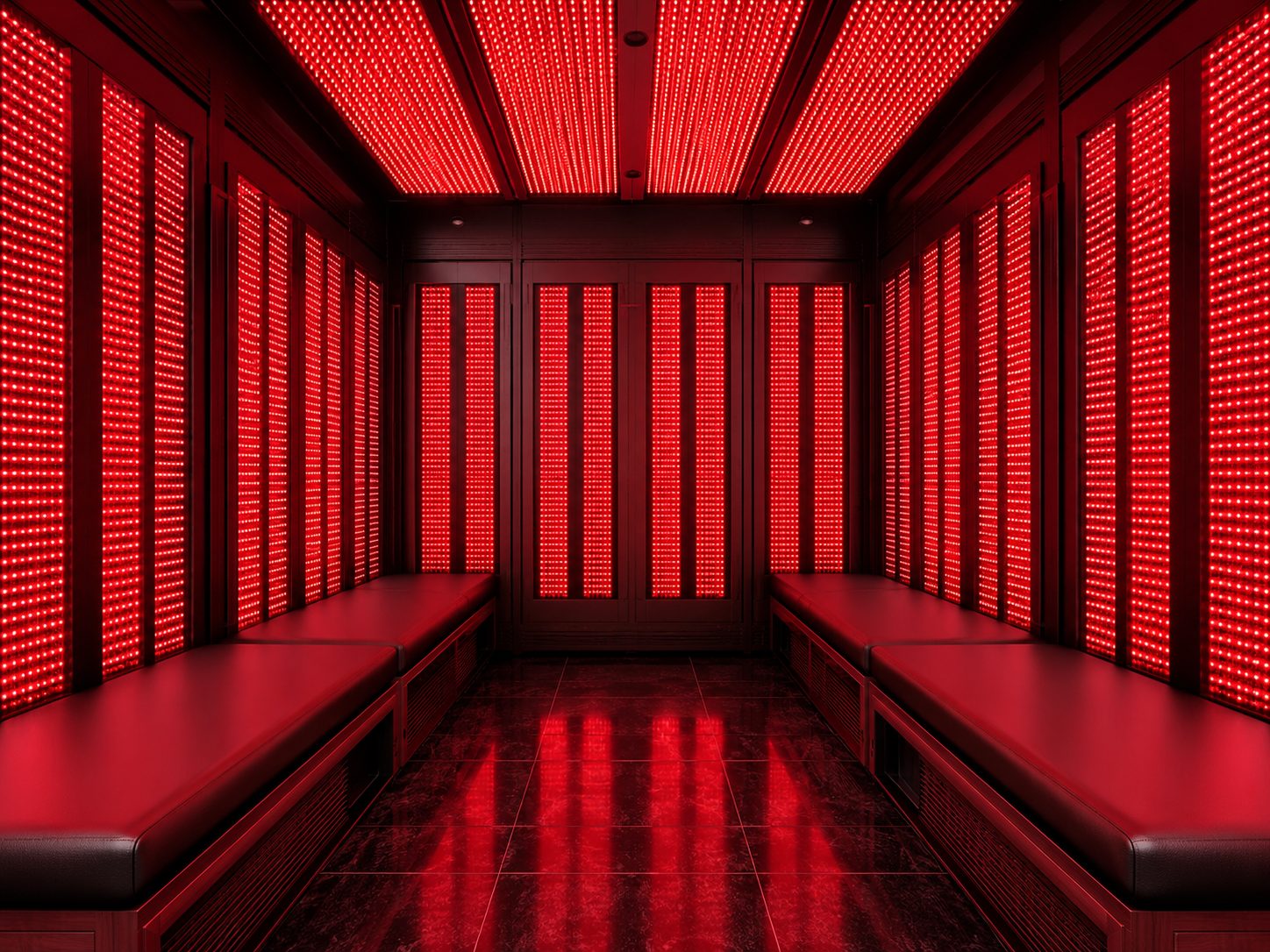

The MB-RL02 is the most complete red light format Marcus Bath builds. Instead of facing a single panel, you stand or sit inside a chamber lined with LED arrays on every surface — even, immersive exposure with no repositioning.
Every room is built around dual-wavelength arrays: 660nm deep red for the skin and 850nm near-infrared for deeper tissue. Because it's custom-built to your dimensions, the finish — wood, acrylic, glass, mirror — is matched to your interior, and ventilation and cooling are planned around your space at the survey.
It is the signature installation of the Marcus Bath red light range, and pairs naturally with our sauna rooms and the wider light therapy collection when you're designing a full wellness suite. Built and installed across India by our own team.

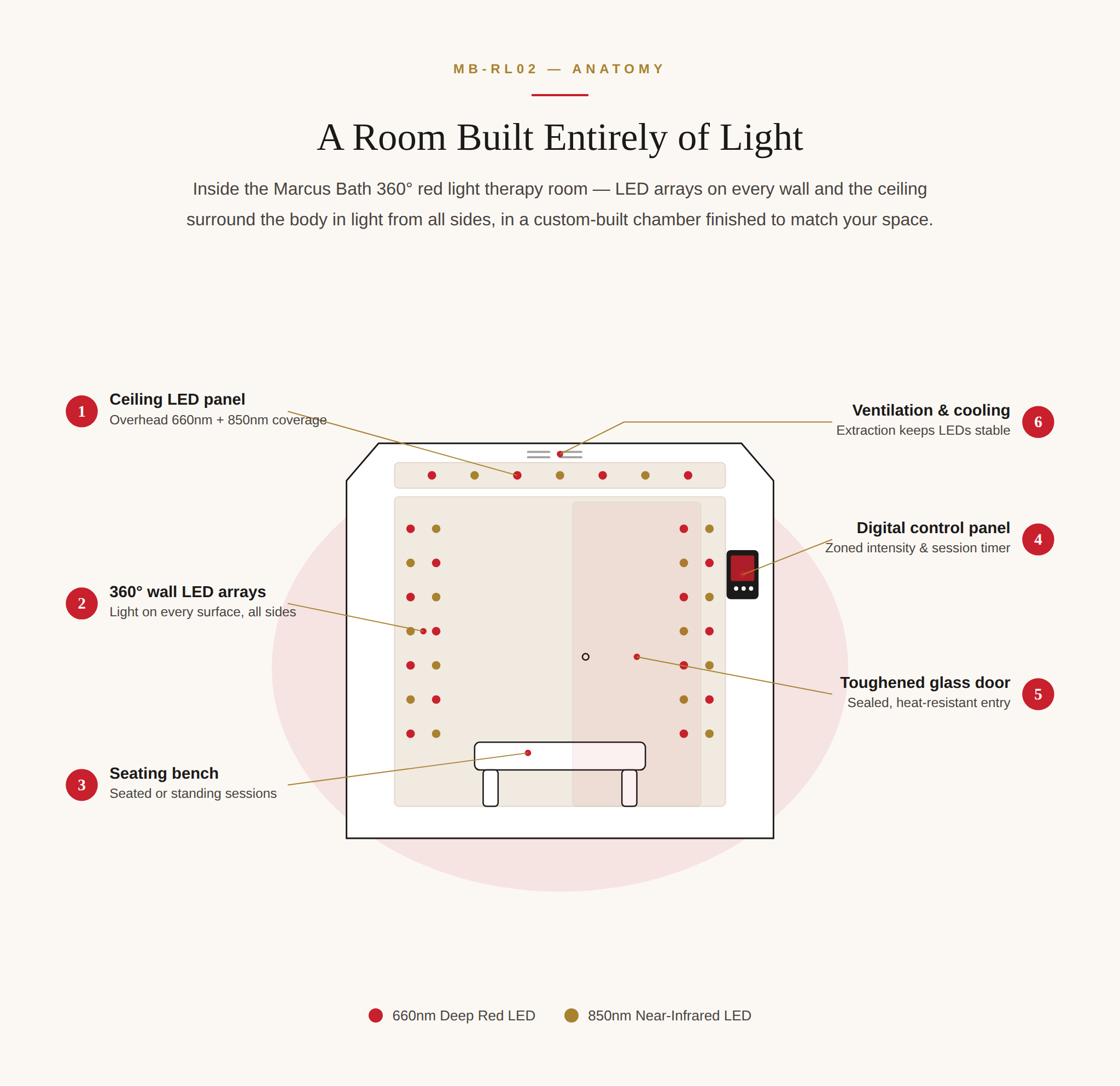

Every Part, Engineered on Purpose
A closer look at what goes into the MB-RL02 — from the dual-wavelength canopy to the cooling system that keeps it running all day.
Technical Detail
Full specification of the MB-RL02. Exact figures are confirmed on your quote and may vary by configuration.
| Light & Performance | |
|---|---|
| Wavelengths | 660nm deep red + 850nm near-infrared (optional 630 / 810 / 940nm) |
| LED count | 30,000 – 45,000+ LEDs (scales with room size) |
| Irradiance | Up to 150 mW/cm² at standing distance |
| Coverage | True 360° — all walls and ceiling |
| Session time | 10 – 20 minutes |
| UV emission | None |
| Power & Controls | |
| Power supply | 220–240V AC, 50Hz — dedicated circuit |
| Power draw | Approx. 5 – 8 kW depending on chamber size |
| Controls | Wall-mounted touch panel, zoned intensity, session timer |
| Ventilation | Integrated extraction & cooling, routed at survey |
| Build & Finish | |
| Frame | Modular aluminium with sealed LED cassettes |
| LED lifespan | Approx. 50,000 hours |
| Finish options | Wood, acrylic, glass, mirror or tile — matched to interior |
| Serviceability | Individual cassettes replaceable in place |
| Included | |
| Design & install | Site survey, custom fabrication, full on-site build & commissioning |
| With every unit | Protective eyewear, staff training, warranty, nationwide support |
Space & Sizing
Plan your room with confidence. Custom sizing is available on request.
What the Light Does
Skin Wellness
660nm deep red light is commonly used to support skin tone, texture and a naturally healthy appearance.
Muscle Recovery
850nm near-infrared reaches deeper tissue — widely used by athletes around training and recovery.
Relaxation
Warm, screen-free red light has become a popular part of evening wind-down routines.
Safe & Non-Invasive
No UV, no heat damage — 10–20 minute sessions with medical-grade, low-EMF LEDs.
Red light therapy is a wellness practice, not a medical treatment. Marcus Bath makes no medical claims. Please consult a qualified physician regarding any health condition.
MB-RL02, Answered
A panel treats one side of the body at a time. The MB-RL02 surrounds you with LED arrays on every wall and the ceiling, so the entire body is exposed evenly at once, with no need to reposition. It's the most immersive and complete red light format available.
The MB-RL02 starts at ₹15,00,000. Because each room is custom-built to your dimensions and finish, final pricing depends on size, LED configuration and installation. Request a quote and our team will prepare exact pricing after a site survey.
Rooms start from about 1500 × 1500 mm floor area for 1–2 users, up to 2400 × 3000 mm for larger suites, with a minimum ceiling height of 2200 mm. The room needs a dedicated electrical circuit and a dry, ventilated space.
Yes. The interior can be finished in wood, acrylic, glass, mirror or tile to match your space. The MB-RL02 is fully custom-built, so the chamber becomes part of your interior design rather than a standalone box.
Yes. Marcus Bath designs, fabricates and installs the MB-RL02 across India including Delhi NCR, Mumbai, Bangalore, Goa, Hyderabad, Pune and Chennai, with the full build handled by our own team.
Red light therapy uses only red and near-infrared wavelengths — no UV, no tanning, no skin damage. The MB-RL02 uses medical-grade, low-EMF LED arrays and protective eyewear is supplied. It is a wellness practice, not a medical treatment.
